80L BLOW MOULDING MACHINE

TDB-80F can help you to make the Max. Volume as 80Liter in the jerrycan/drums. It’s widely used to make 50~80L jerrycan. This machine is with 12L accumulator type in the die head, 100 point parison controller, bottom blowing device and take-out device. The Max.weight of the plastic jerrycan can be 5.8~6KGS. You can have the options in the servo motor in the hydraulic system. We can make the most suitable configuration according to your requirement in you new project.

Video & Parameters

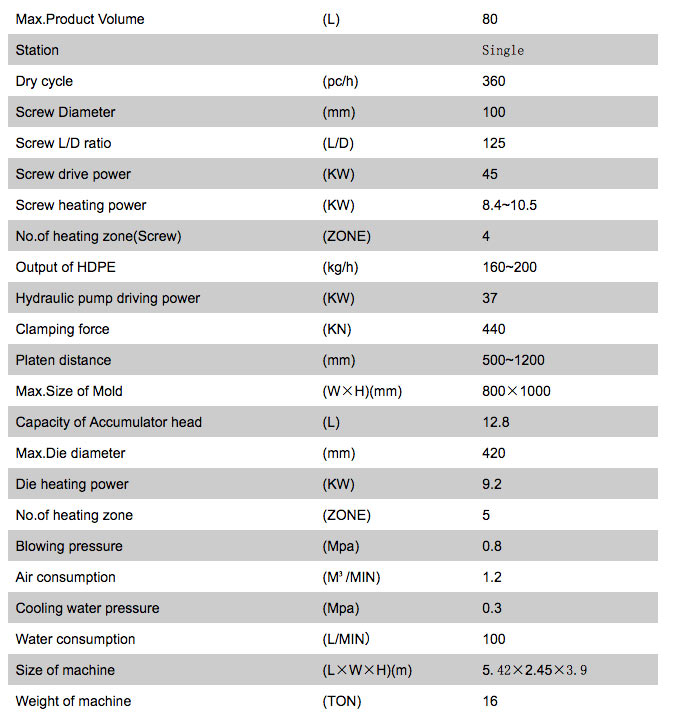

  Specification Station   Single
Max.product volume L 80
Dry cycle pc/h 240
Output of HDPE kg/h 180
Weight of machine kg 16000
Size of machine(L*W*H) m 5.42*2.45*3.9
    Die head Max.die diameter mm 420
Die head heating zone   6
Capacity of accumulator head L 12.8
Die head heating kw 30
  Clamping Unit Platen distance mm 500~1200
Clamping force kn 440
    Extruder Unit Screw diametre mm 100
Screw length/diametre ratio   25
Screw heating power kw 21
No.of heating zone   4
  Power Unit Hydraulic pump driving power kw 35.5
Screw motor power kw 45
Total power kw 135
      Remarks Air consumption m³/min 1.2
Blow pressure Mpa 0.6
Cooling water pressure Mpa 0.3
Water consumption L/min 100
Max size of mold(W*H) mm 800*1000
