120L Blow Moulding Machine
120LExtrusion blow molding

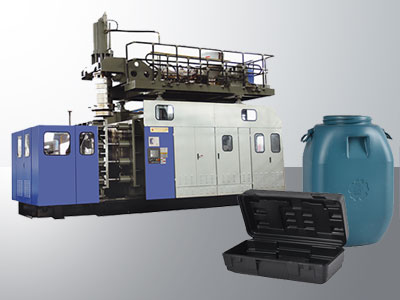

TDB-120F can help you to make the Max. Volume as 120Liter in the jerrycan/drums. It’s widely used to make 80L~120L jerrycan. This machine is with 12L accumulator type in the die head, 100 point parison controller, bottom blowing device and take-out device. The Max.weight of the plastic jerrycan can be 5.8~6KGS. You can have the options in the servo motor in the hydraulic system. We can make the most suitable configuration according to your requirement in you new project.
Technical parameters

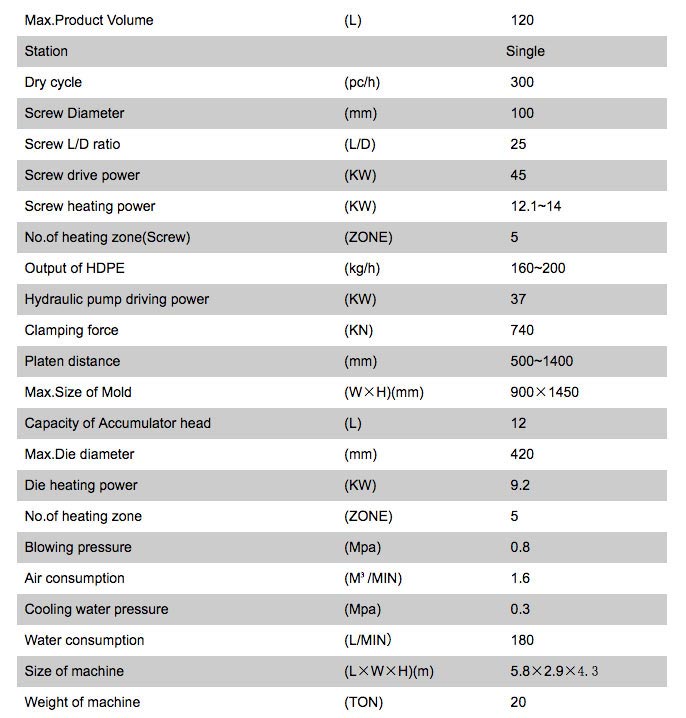

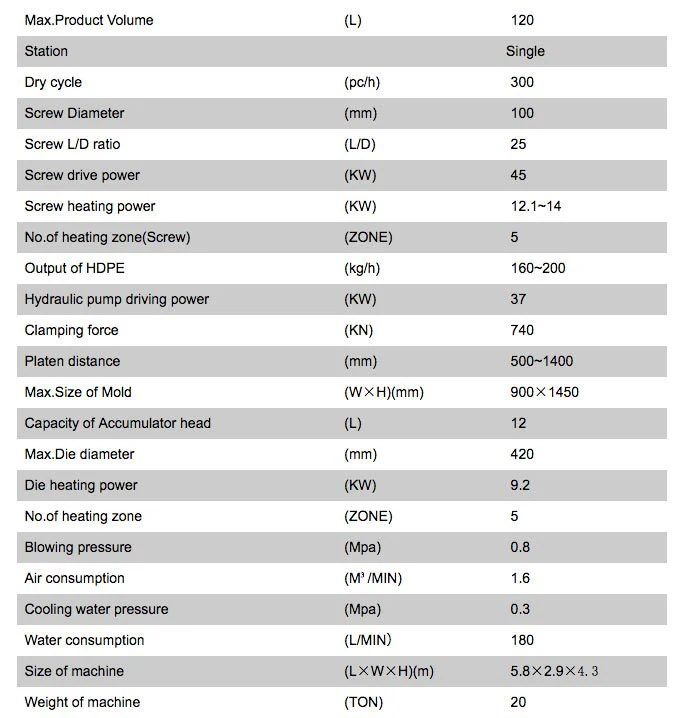

Parameters for 120L. Open the image to see it full size, or compare blow molding machines by container size.
Technical Features:
- Electronic control system: Japanese Mitsubishi PLC computer plus man-machine interface (Chinese or English) red paper, touch-screen operation. All process settings, changes, search, monitoring, fault diagnosis and other functions are achieved on the touch screen, no contact with the working principle, components and durable.
- Hydraulic system: proportional pressure control, equipped with imported brand-name hydraulic components, stable and reliable.
- Plasticizing system: efficient plasticizing mixing screw, plastic plastic to ensure adequate and uniform.
- Speed control system: frequency control + alloy steel gear reducer, smooth speed, low noise, durable
- Opening and closing mode, mobile system: beam arm, three o’clock, the center of the mold clamping mode, to ensure long-term use. Clamping force balance, no deformation, and the use of translation mode body (ball linear guide), high precision, less resistance, faster.
- Blowing needle holder: the overall angle-type blowing needle holder, stable and not shift, to ensure that products cut smooth
