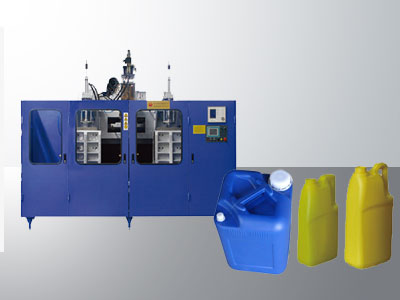

18L BLOW MOULDING MACHINE
This machine can help you to make the Max. Volume as 18~20Liter in the jerrycan. It’s widely used to make 4l~18L bottles. You can have different options in this 18Liter machine like single station, double station, single head, multi heads, view strip, single layer, multi-layers and so on. In fact, this machine is very popular to make 4 gallon PE water bottle. We can make the most suitable configuration according to your requirement in you new project.

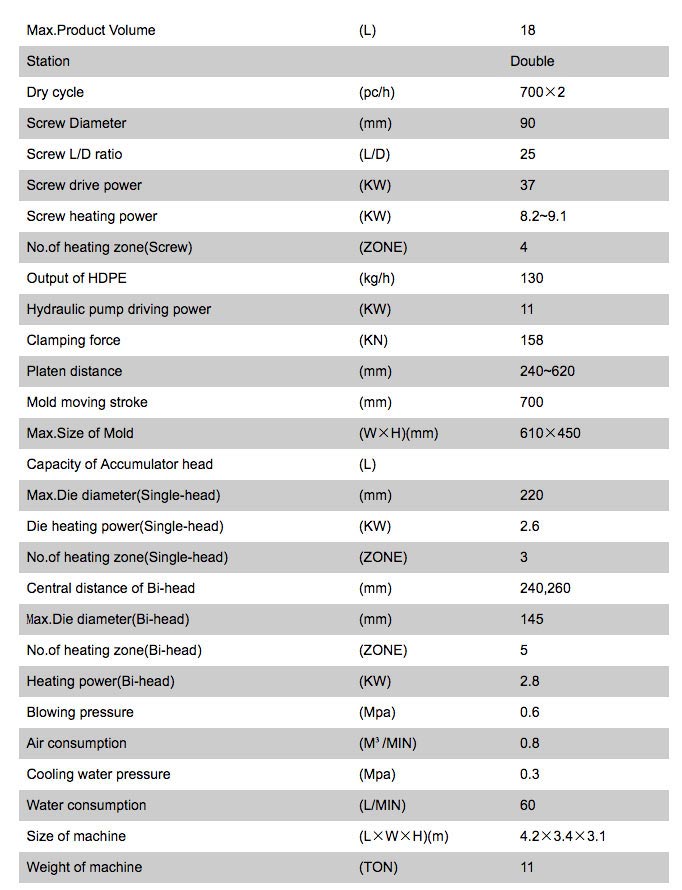

Video & Parameters:
Specification | Station | Double | |
Max.product volume | L | 18 | |
Dry cycle | pc/h | 700*2 | |
Central distance of double head | mm | 240 | |
Output of HDPE | kg/h | 130 | |
Weight of machine | kg | 11000 | |
Size of machine(L*W*H) | m | 4.5*3.4*3.1 | |
Die head | Max.die diameter | mm | 120 |
Die head heating zone | 7 | ||
Die head heating | kw | 15 | |
Clamping Unit | Platen distance | mm | 360~680 |
Mold moving stroke | mm | 700 | |
Clamping force | kn | 158 | |
Extruder Unit | Screw diametre | mm | 90 |
Screw length/diametre ratio | 25 | ||
Screw heating power | kw | 17.4 | |
No.of heating zone | 4 | ||
Power Unit | Oil pump motor power | kw | 15 |
Screw motor power | kw | 37 | |
Total power | kw | 78.5 | |
Remarks | Air consumption | m³/min | 0.8 |
Blow pressure | Mpa | 0.6 | |
Cooling water pressure | Mpa | 0.3 | |
Water consumption | L/min | 60 | |
Max size of mold(W*H) | mm | 690*540 |
