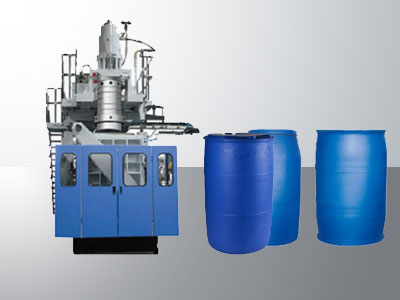

250L BLOW MOULDING MACHINE

This machine can help you to make the Max. Volume as 250Liter in the plastic drums. It’s widely used to make 150L~250L jerrycan. This machine is with 22L accumulator type in the die head, 100 point parison controller, bottom blowing device and take-out device. The Max.weight of the plastic jerrycan can be 8.5~10.0 KGS. You can have the options in the servo motor in the hydraulic system. We can make the most suitable configuration according to your requirement in you new project.

Video & Parameters

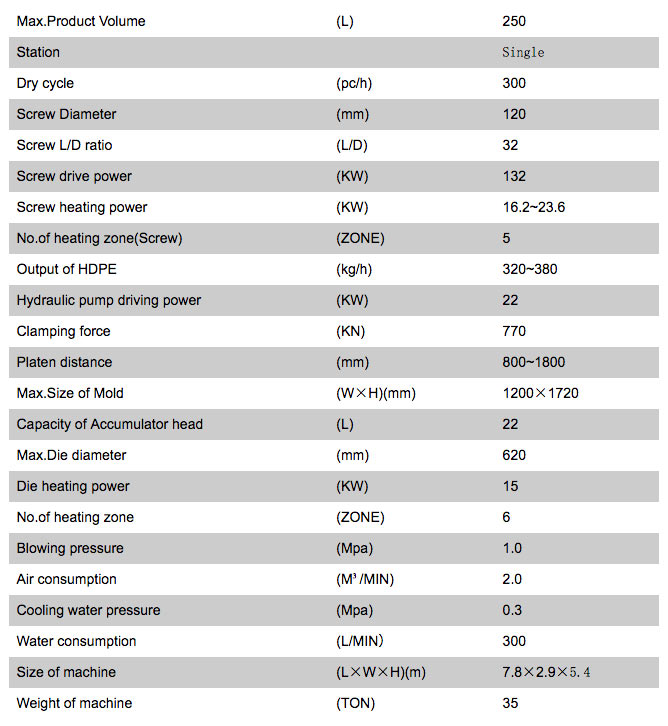

  Specification Station   Single
Max.product volume L 250
Dry cycle pc/h 300
Output of HDPE kg/h 380
Weight of machine kg 35000
Size of machine(L*W*H) m 7.8*2.9*5.4
    Die head Max.die diameter mm 290
Die head heating zone   7
Capacity of accumulator head L 22
Die head heating kw 45
  Clamping Unit Platen distance mm 800~1800
Clamping force kn 770
    Extruder Unit Screw diametre mm 120
Screw length/diametre ratio   32
Screw heating power kw 53
No.of heating zone   5
  Power Unit Hydraulic pump driving power kw 74.5
Screw motor power kw 132
Total power kw 304.5
      Remarks Air consumption m³/min 2
Blow pressure Mpa 0.6
Cooling water pressure Mpa 0.3
Water consumption L/min 300
Max size of mold(W*H) mm 1200*1720
