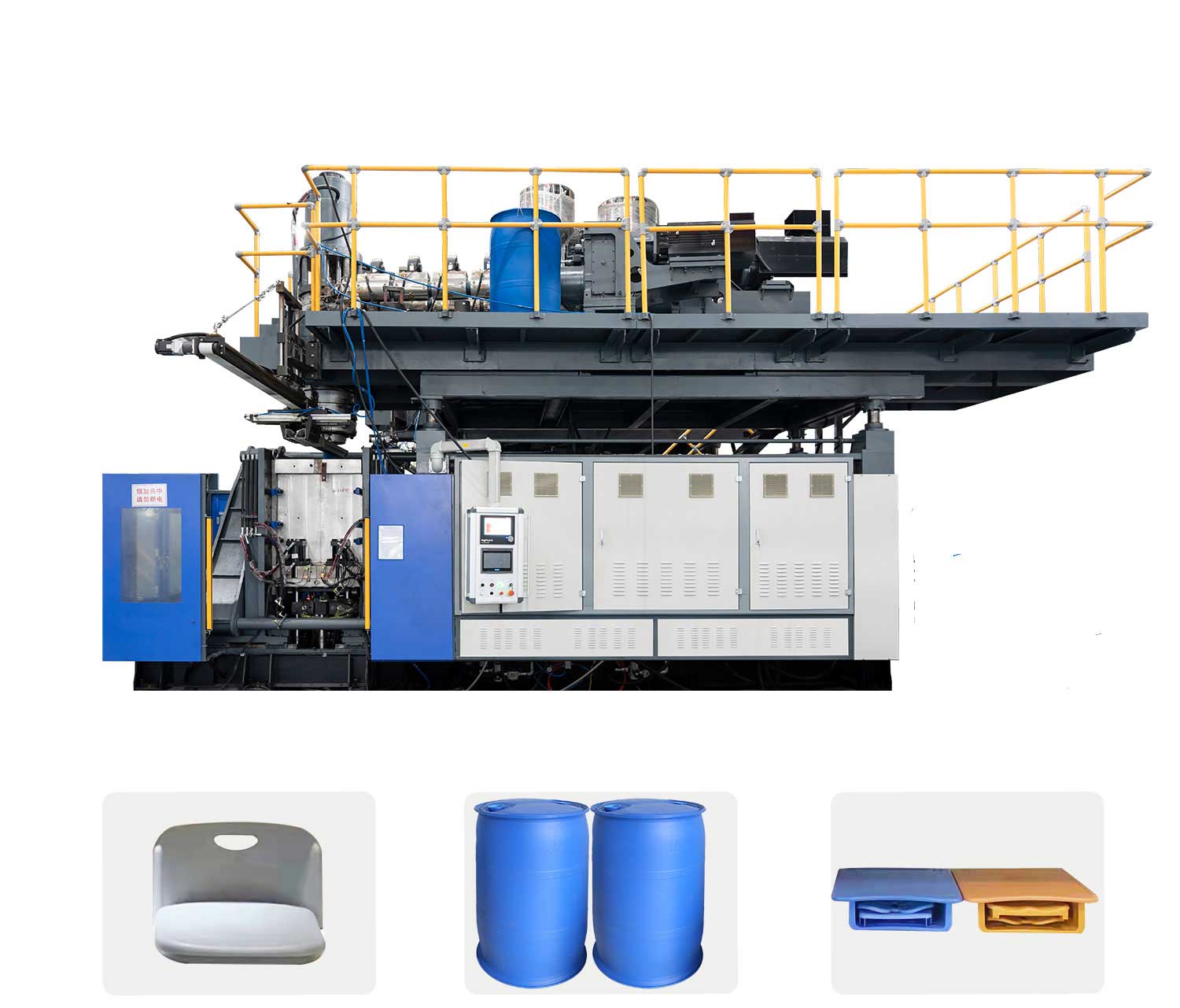

TDB 160df 2p blow molding machine extrusion blow molding machine

TDB-160DF/2P Extrusion Blow Molding Machine

This machine belongs to our high-end series. It features a hydraulic servo system that saves energy and runs faster. Equipped with an elbow-style clamping unit, it ensures more uniform clamping force. It can also be equipped with multiple screws for multilayer production. This is a 160 L class machine, for containers up to 160 L. It is very popular in the African market.

Technical Parameters

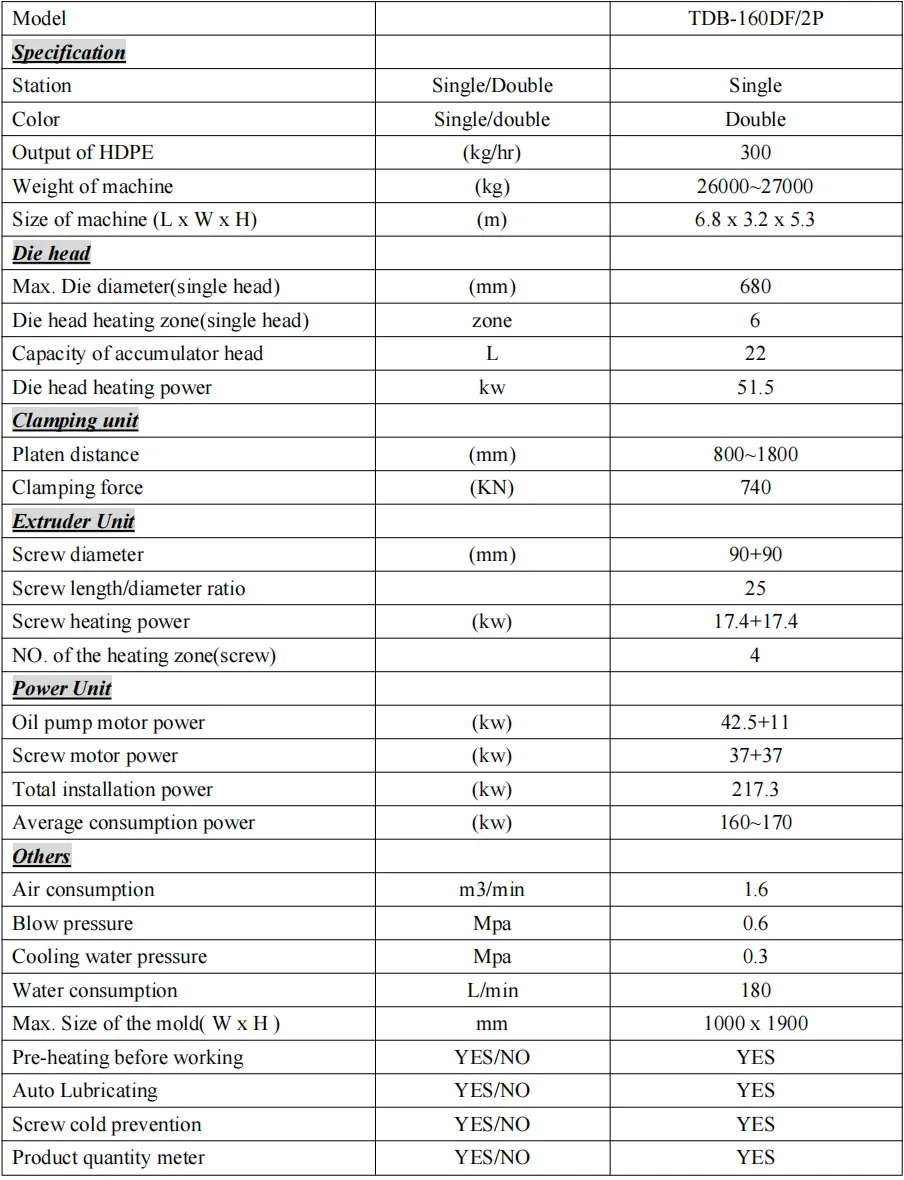

TDB-160DF/2P technical specification table

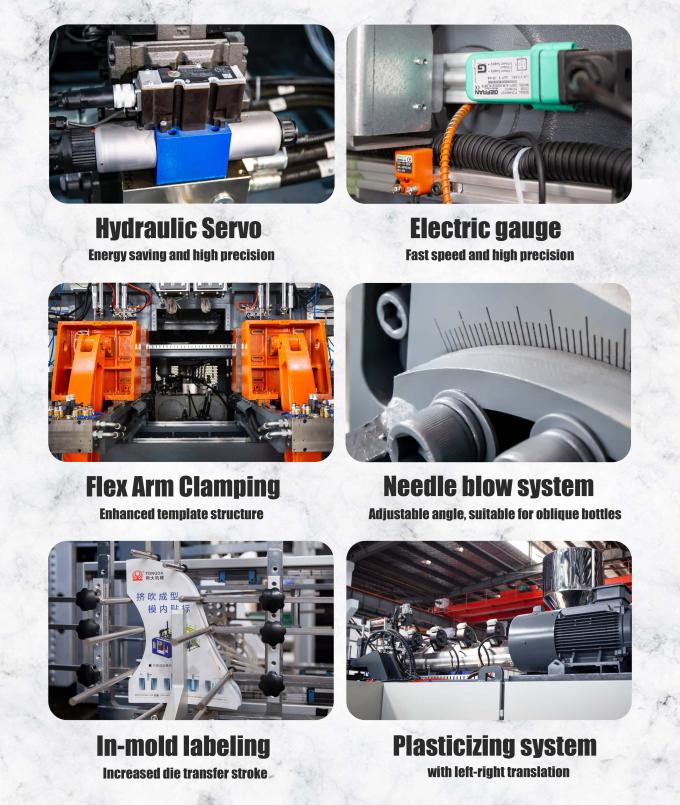

Product Details

TDB-160DF/2P

The TDB series represents our high-end extrusion blow molding machines. They are equipped with a hydraulic servo system, saving energy and ensuring more stable operation.

The clamping unit adopts an elbow-style design, providing higher and more uniform clamping force. A proportional valve is used to control mold opening and closing, while linear guide rails help make the movement more stable and faster.

The published class is 160 L, for containers up to 160 L. Extruder kg/h is not published as text on this page.

The main parts of this machine are designed and manufactured in-house. We carry out independent R&D and inspection. If you have other special requirements, we can provide customized services for you.

Application

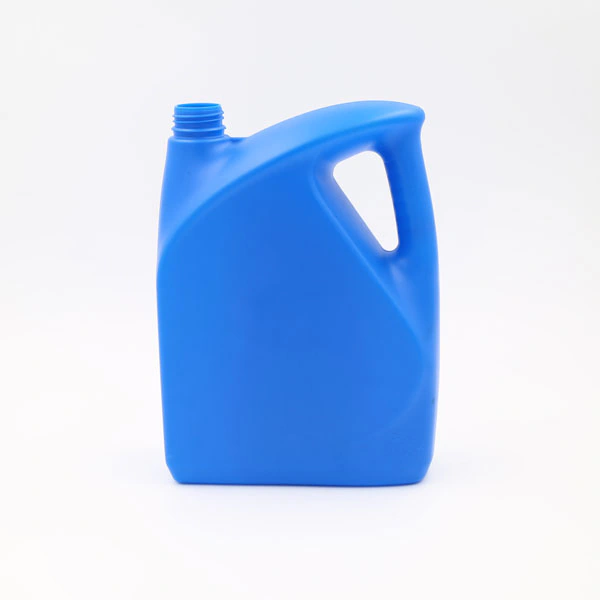

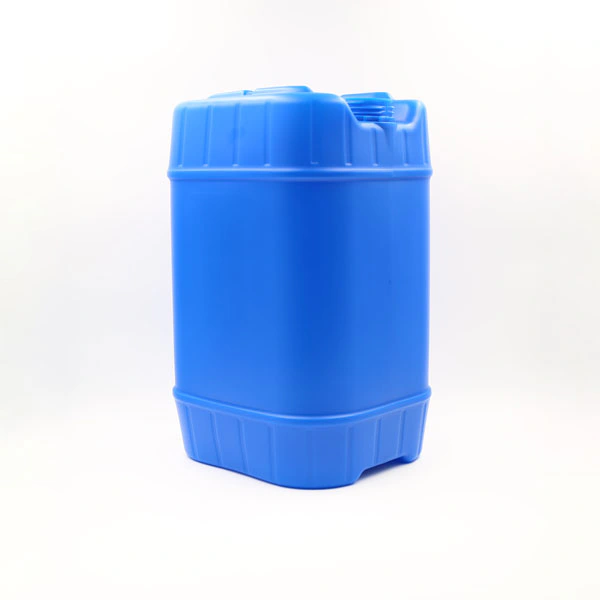

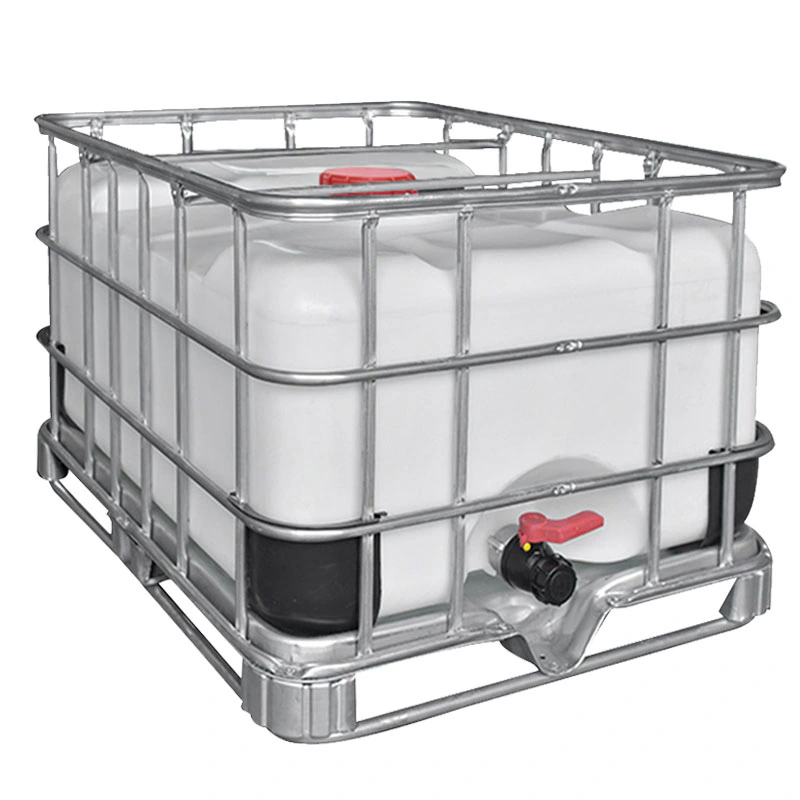

TDB-160DF/2P IBC tank in a steel cage HS 12l blow molding machine HS 12l blow molding machine, view 2

FAQ

What can Tongda do for you?

If you’re interested in our machines, we welcome your visit at any time. Seeing is believing. With our own manufacturing facilities, R&D team, and after-sales service team, Tongda Machinery can supply you with high-quality machines and excellent service.

How do you guarantee the safety of our funds?

We are a leading manufacturer of extrusion blow molding machines with 27 years of experience, and we are the vice chairman unit of the China Plastics Machinery Industry Association.

How do you ensure on-time delivery?

For each order, we create a dedicated task list covering the machine model, order date, expected delivery date, configuration, mold testing requirements, and key deadlines for engineering drawings and machine assembly. The head of each department signs the list for confirmation. Our Program Management Center and sales team track and update progress at each stage.

How do you ensure quality?

TONGDA MACHINERY has specialized in making blow molding machines since 1999. To ensure the accuracy of each part, we use professional processing equipment and manufacturing methods developed over the years. Each component must be strictly inspected before assembly. Each assembly is supervised by a master with over 10 years of experience. After assembly is complete, we connect all the machines and run the full production line for at least 12 hours to check stable operation before delivery to the customer’s factory.

What should I do if the product is severely deformed?
  1. Correct the abnormal shape of the die properly;
  2. The product is not cooled enough, and the cooling water temperature needs to be lowered, or the cycle should be appropriately extended;
Can old molds be used on this machine?

Please provide specific information about the old mold, and our engineers will help confirm whether it can be installed directly on our machine.

Is it possible to make oblique mouth products?

We can make oblique products, but we need to look at the angle for details, so please send product pictures to confirm.

How do you choose between single-station and double-station machines?

Small continuous-die-head extrusion blow molding equipment is generally available in single-station and double-station configurations. The main difference is output. Single-station machines typically have longer idle or round-trip mold movement times.
