Choosing an IBC inner-bottle blow molding line starts with the complete container system: bottle geometry, resin, closure, cage, base and intended contents. The machine must distribute material across a large part and produce an inner bottle that meets the agreed package tests at a repeatable accepted output.
Tongda’s TDB-1200FP project material describes an accumulator-head configuration for large IBC inner bottles. This guide explains the process choices and the checks to include in a production trial. It complements the IBC tank blow molding machine overview, which covers the commercial equipment application.
What makes an IBC inner bottle demanding?
Large flat areas, corners, the shoulder, neck, outlet and bottom pinch-off place different demands on the wall. Insufficient material at a critical location can affect performance even when the total bottle weight is on target.
The inner bottle also works with its cage and base during filling, handling and stacking. Check dimensions and interfaces on the assembled system. Closure compatibility and outlet fit are part of the project, rather than details to resolve after selecting the machine.
| Project input | Selection check |
|---|---|
| Bottle drawing and nominal volume | Establishes the forming envelope, mold geometry and handling requirements |
| Resin grade and layer structure | Affects plasticizing, parison behavior and suitability for the contents |
| Target weight and wall criteria | Defines where material is required and how quality will be measured |
| Neck, outlet, cage and base | Establishes assembly interfaces and the complete-package test conditions |
| Accepted output and utility limits | Defines the run conditions for a meaningful capacity comparison |
Accumulator-head and extrusion configuration
The reported TDB-1200FP arrangement uses two 120 mm extruders with a 32:1 length-to-diameter ratio and a two-layer flow-guide accumulator head. These details describe the configuration in Tongda’s account, not a specification for every machine carrying a similar model name.
The accumulator head stores melt before discharging the large parison. Stable plasticizing, controlled discharge and appropriate melt distribution must work together. For a multilayer bottle, inspect the actual layer distribution and continuity in addition to the overall wall.
The current TDB-1200F/P product page uses a related model designation. Confirm the quotation and technical drawing when matching the source’s TDB-1200FP designation to a proposed machine configuration.
Clamping, access and the complete cycle
Tongda’s account describes a three-platen, two-tie-bar clamping arrangement, separate provisions for fast motion and clamping force, and guides that facilitate mold access. These features are relevant to handling a large mold and removing a large part.
Capacity depends on the full sequence: material preparation, accumulation, parison discharge, mold closing, blowing, cooling, venting, opening and part removal. Several operations may overlap in a configured line, so define precisely what the quoted cycle includes.
The source describes a venting step below two seconds in a particular setup. Venting time is not total cycle time. It cannot be used alone to calculate IBC bottles per hour.
Wall control, hydraulics and production records
The described line integrates a Mitsubishi controller and a MOOG parison-control system. Parison programming adjusts the extrusion profile; finished-wall inspection remains a separate acceptance activity. See MOOG’s description of blow molding control for the controller’s process role.
The project account also describes servo-controlled hydraulics and equipment diagnostics. Evaluate those features through agreed motion, energy and fault-recording tests. An energy comparison needs the same product, material, output and auxiliary-equipment boundary; the source does not establish a universal percentage saving for every IBC line.

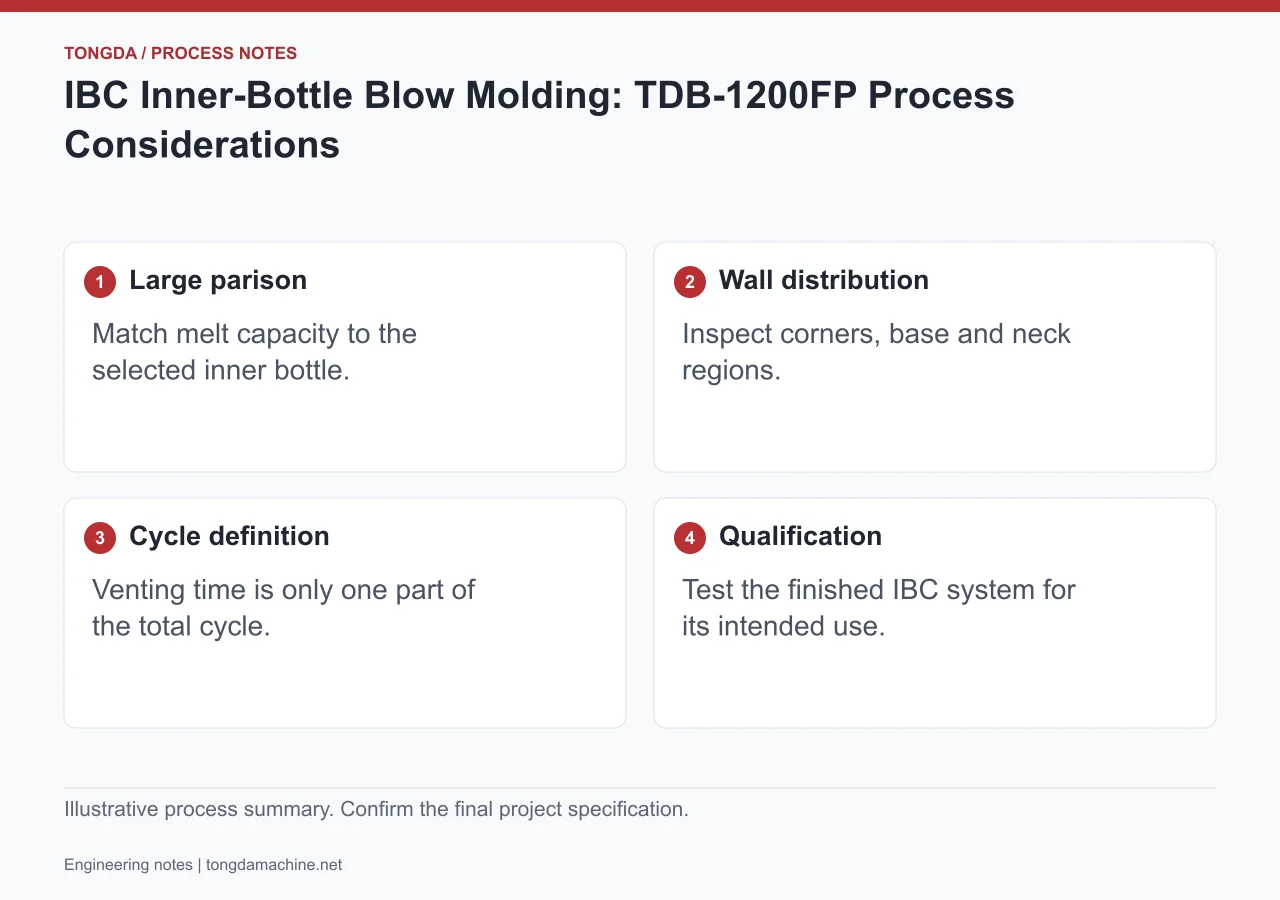

Agree an acceptance checklist before ordering
- Bottle geometry: dimensions, neck and outlet fit, and assembly with the cage and base.
- Material distribution: weight, critical wall sections, layer arrangement and pinch-off.
- Package performance: leakage and the application-specific handling, stacking and other agreed tests.
- Production stability: accepted output over a defined continuous run, with stops and rejects recorded.
- Utility conditions: cooling-water temperature and flow, compressed air and metered energy scope.
- Operation and maintenance: mold access, recipe backup, alarms, operator training and spare-parts responsibilities.
Where the IBC will carry dangerous goods, establish the applicable qualification for the assembled package and intended use. Machine configuration alone does not certify the completed IBC.
Questions IBC producers ask
Does the machine’s nominal capacity define the bottle I can produce?
Not on its own. The bottle geometry, shot requirement, mold dimensions, material and complete process must fit the agreed machine configuration.
Are two extruders the same thing as two wall layers?
Not necessarily. Extruders supply melt streams; the die-head design determines how those streams form the wall. The particular source configuration describes two layers, but head architecture must be checked on the proposed line.
What should I send for an IBC machine proposal?
Provide the bottle drawing, cage and base interfaces, closure and outlet details, resin and layer requirements, target weight, intended contents and accepted-output target.
Plan the machine and mold together
Request an IBC production proposal with the complete product specification. The blow mold design guide explains tooling interfaces and cooling checks; the 200 L drum guide covers another large-container accumulator-head application.
