Water Tank Blow Molding Machine
Tongda builds large extrusion blow molding machines that can be configured for plastic water tanks, IBC tanks, chemical drums and other large hollow products from 1,000 L to 2,000 L.
Machines in this series
Not sure which series fits? Compare blow molding machines by container size and drive type.
What is a water tank blow molding machine?
A water tank blow molding machine is a large extrusion blow molding machine that forms HDPE storage tanks in one piece. A big parison has to be extruded quickly and evenly, so these machines use an accumulator die head that stores the melt and pushes it out at once, a multi-point parison controller to keep the wall thickness even over a tall part, and a take-out device to lift the finished tank out of the mold. Tongda’s 1200 L, 1600 L and 2000 L series combines an accumulator die head, a 100-point parison controller, a bottom blowing device and a take-out device.

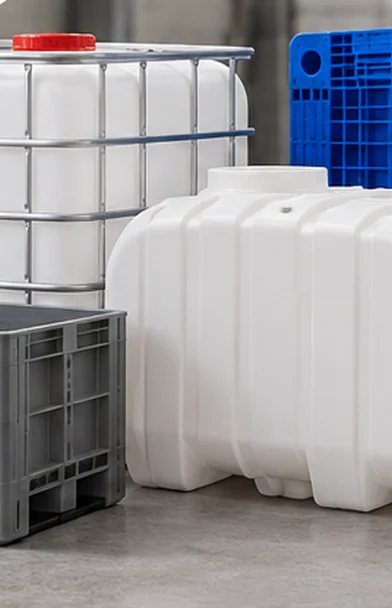

What these machines produce
- Plastic water tanks
- IBC tanks
- Chemical drums
- Plastic pallets, outdoor panels, hospital bed boards and other large hollow parts
The same machine can be configured for water tanks, IBC tanks and drums by changing the mold, so one line can serve several products.
Tongda water tank machines by tank size
| Model | Max. container | Notes |
|---|---|---|

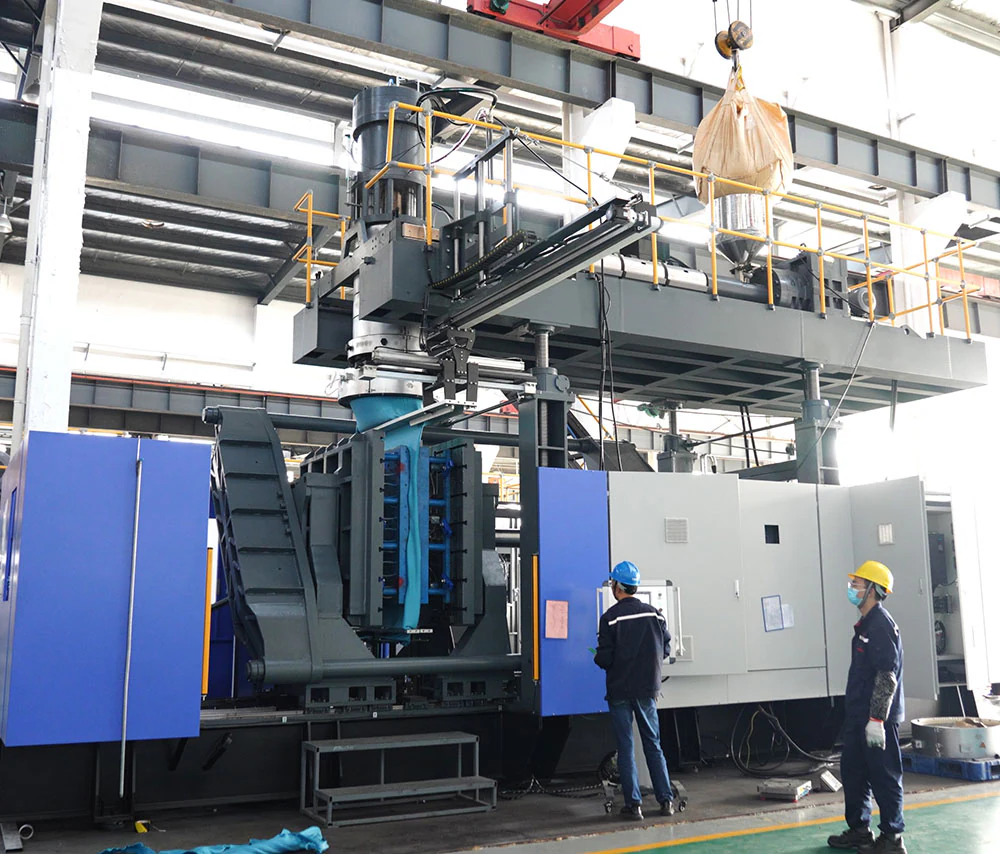

| TDB-1000L | 1,000 L | Single station |

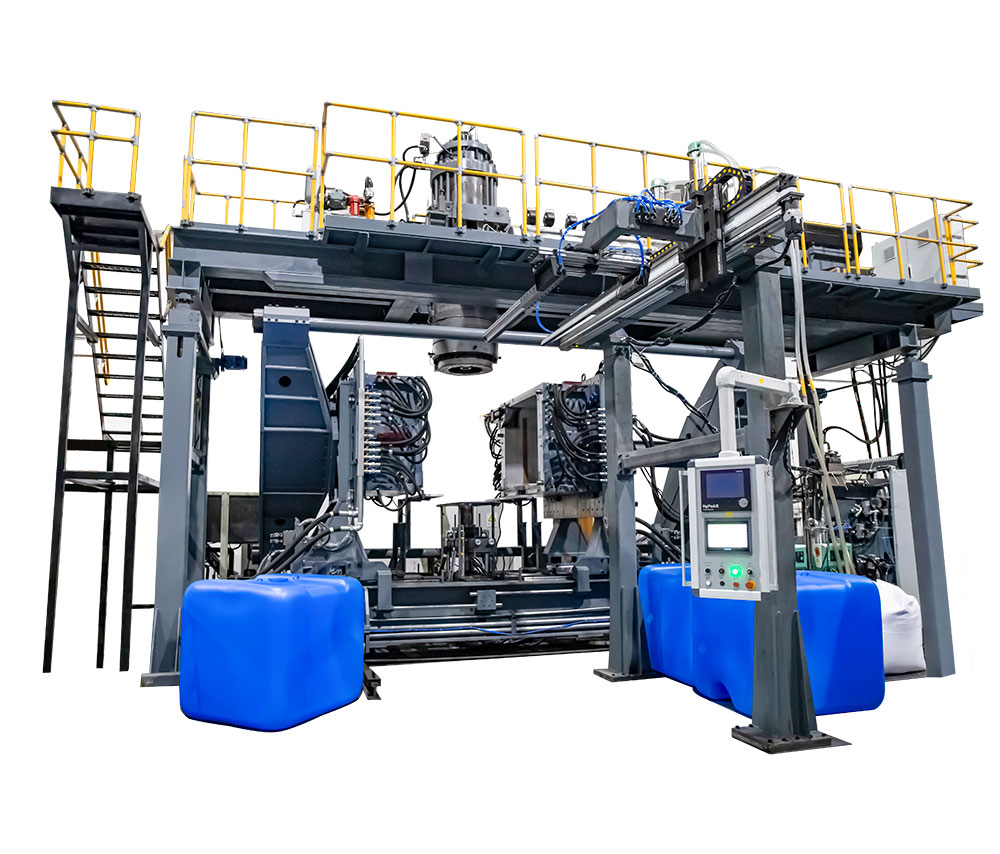

| TDB-1200L | 1,200 L | Configurable for water tanks, chemical drums and industrial containers |

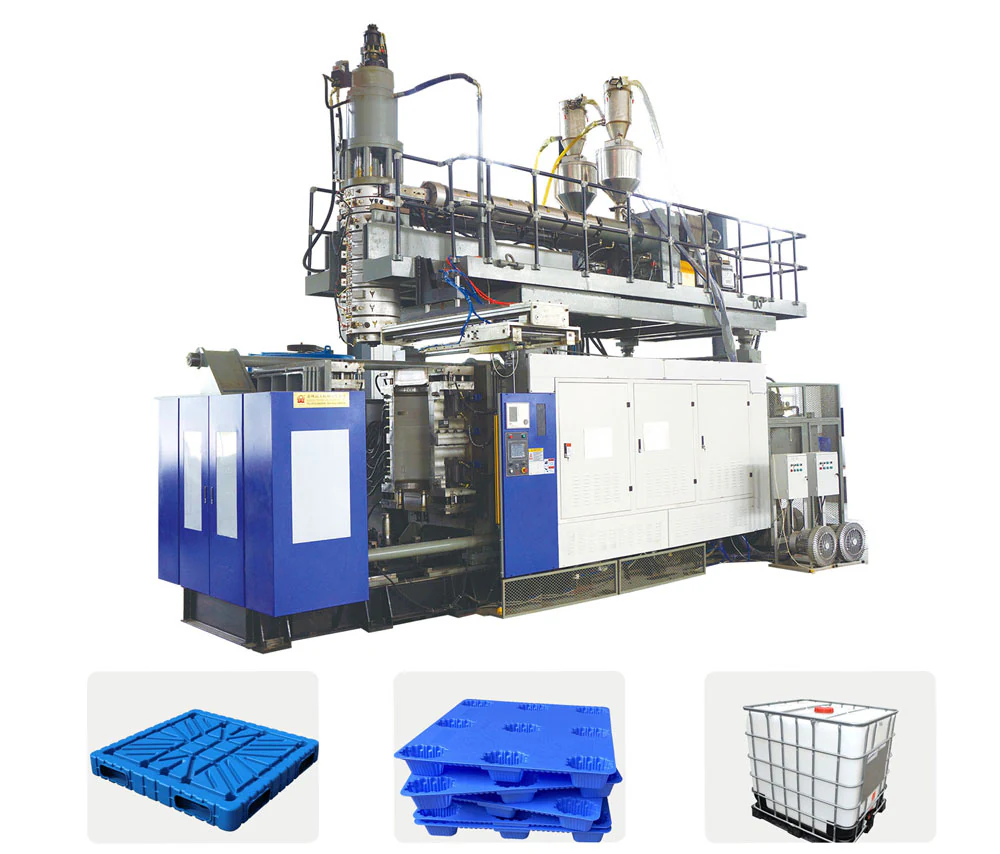

| TDB-1200F/P | 1,200 L | Configurable for water tanks, chemical drums and industrial containers |

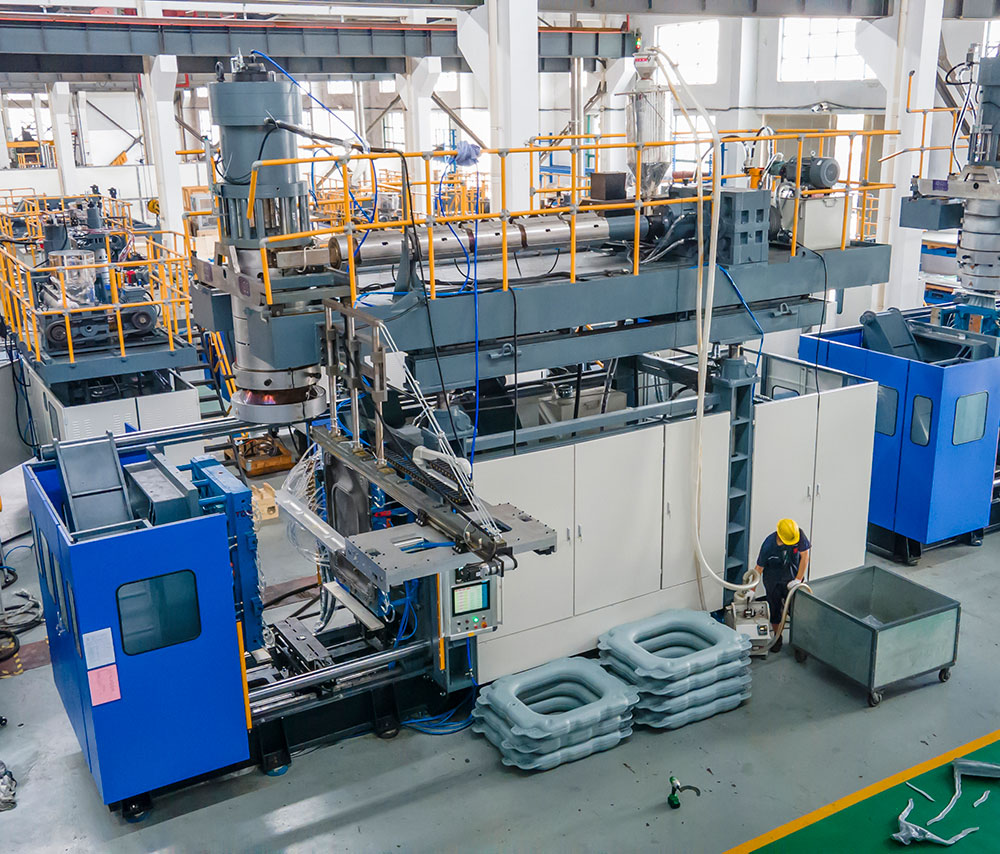

| HT-1500L | 1,500 L | Single layer, servo motor |
| 1200 L / 1600 L / 2000 L series | 2,000 L | Accumulator die head, 100-point parison controller |
For tanks below 1,000 L, see the servo series, which runs up to the TDW-350F for 350 L containers.
What to decide before you order
- Tank volume and shape. They set the clamping force, platen size and accumulator volume, and so the machine model.
- Wall thickness and weight. Tell us the target weight; the parison controller distributes material to the corners and the base, where tanks take the most load.
- Material. Water tanks are usually HDPE. See HDPE blow molding machines.
- Output and automation. Take-out devices, deflashing and a chiller, crusher and air compressor complete the line. See ancillary equipment.
For the cost factors, read blow molding machine price and options. For the full range, see all extrusion blow molding machines.
What size water tank can a Tongda blow molding machine make?
Tongda’s large machines cover containers from 1,000 L up to 2,000 L. Send your tank drawing and we will match the model and accumulator size.
Can the same machine make water tanks and IBC tanks?
Yes. The TDB-1200L, TDB-1200F/P and HT-1500L can each be configured for water tanks, chemical drums and other large industrial containers, with a mold for each product.
Can I see a large blow molding machine running?

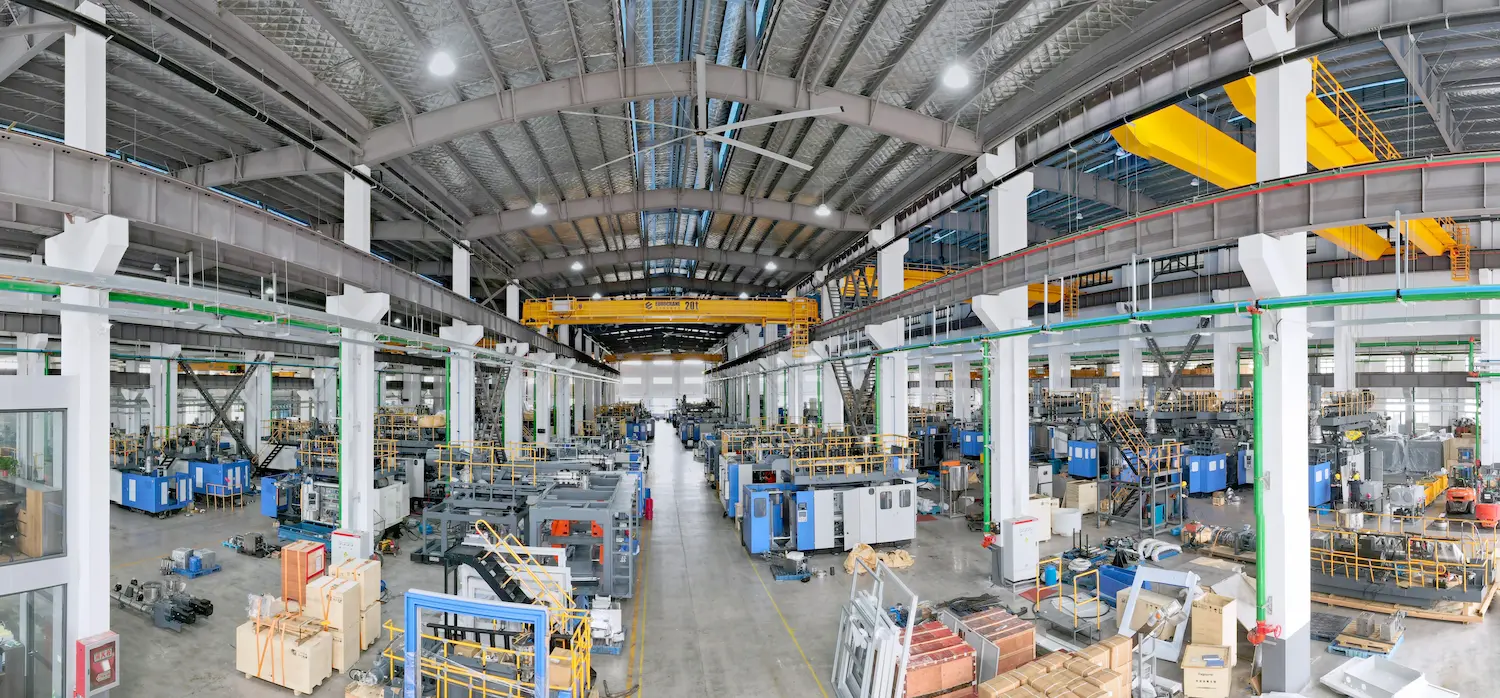

Yes. Customers are welcome to visit the Tongda factory in Zhangjiagang, Jiangsu, to see machines in production before ordering. You can also watch them running in our video library.
