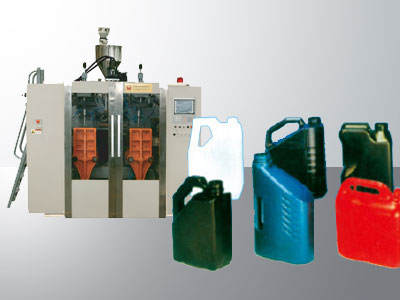

5L BLOW MOULDING MACHINE

5L BLOW MOULDING MACHINE

  • Station:single/double(choose one)
  • Die head:Single die-head, double die-head, triple die-head, four die-head(choose one)
  • Suitable for the production of 0~5L plastic hollow products.
  • Continuous extrusion die head with high output extrusion system , mold moving proportional servo control system.
  • Standard Hydraulic servo control system.
  • Liquid Level Line extrusion system option.
  • Application: 0-5L Shampoo bottle, body wash bottle, dish soap bottle, lubricating oil bottle blow moulding

Product Description

Specification Station Double
Max.product volume L 5
Dry cycle pc/h 700*2
Central distance of double head mm 160
Output of HDPE kg/h 85
Weight of machine kg 5500
Size of machine(L*W*H) m 3.43*2.3*2.65
Die head Max.die diameter mm 108
Die head heating zone 5
Die head heating kw 10.7
Clamping Unit Platen distance mm 148~508
Mold moving stroke mm 400
Clamping force kn 70
Extruder Unit Screw diametre mm 70
Screw length/diametre ratio 25
Screw heating power kw 13.2
No.of heating zone 3
Power Unit Oil pump motor power kw 11
Screw motor power kw 22
Total power kw 53.8
Remarks Air consumption m³/min 0.4
Blow pressure Mpa 0.6
Cooling water pressure Mpa 0.3
Water consumption L/min 60
Max size of mold(W*H) mm 390*390

Application:

Company:

FAQ:

Q: What can Tongda do for you?
A:If you’re interested in our machines, we welcome your visit at any time. seeing is believing, TONGDA MACHINERY with own manufacture and developed & research team & after-service team, we can supply you machine with good quality and good after-service.
Q:How to guarantee our funds be safe?
A:We’re leading manufacturer of extrusion blow molding machine with over 23 years experience, and is the vice chairman of China Plastics Hollow Making Machinery Industry Association
Q:How to guarantee the delivery time?
A:For each order, we will create an exclusive order processing task list, which including machine model, order time, expected delivery time, exact configuration, mould testing requirement, important time points such as deadline for engineering to make drawing, deadline for assembling the machine. This list has been signed by the heads of each department for confirmation.
And our Program Management Center and sales will always follow and update the status for each stage.
Q:How you ensure the quality?
A:TONGDA MACHINERY is specialized in making blow molding machine for more than 20 years.
. In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
. Each component before assembly needs strictly control by inspecting personnel.
. Each assembly is in charged by a master who has working experience for more than 10 years
. After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers’ factory

Customer Testimonials :

I am Kollogi Saidulu Production Manager from Tanzania, East Africa. As per my knowledge of 20 years experience and I can say proudly ” TONGDA” is one the Top brand machines through out CHINA. I am using 05 ltrs machines double head double station as well single head singel staion since 5 years and 18ltrs machine single head as well as double head in one machine last two years.
