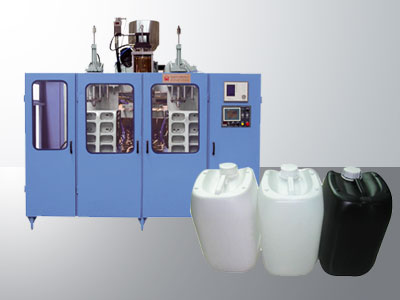

12L BLOW MOULDING MACHINE

This machine can help you to make the Max. Volume as 12Liter in the jerrycan. It’s widely used to make 500ml~12L bottle. You can have different options in this 12Liter machine like single station, double station, single head, multi heads, view strip, single layer, multi-layers,auto-deflashing function and so on. We can make the most suitable configuration according to your requirement in you new project.

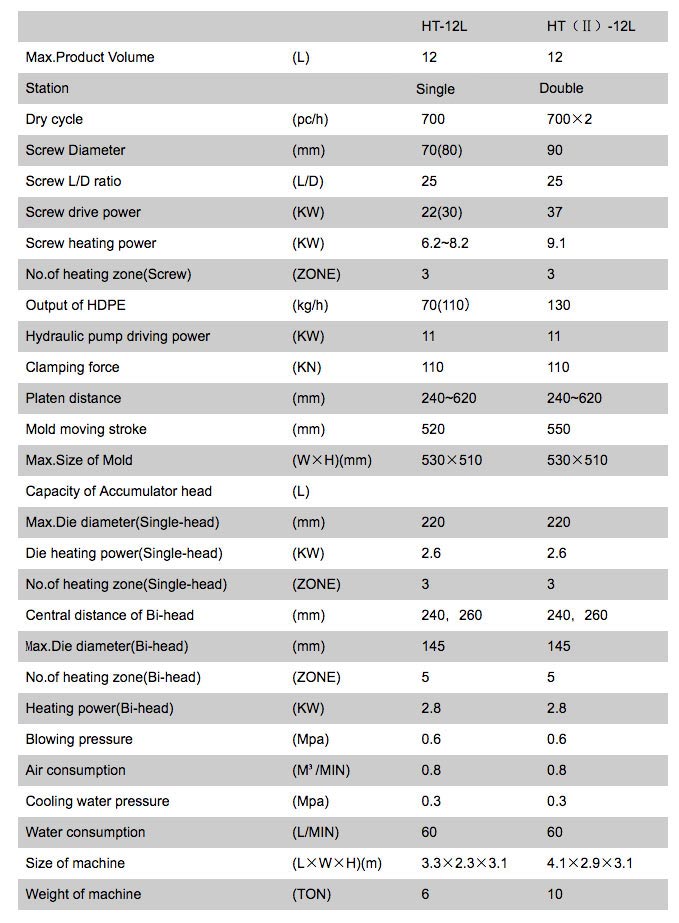

Technical Features:

1. Electric system: Mitsubishi PLC system and human-machine interface control(Chinese & English language). Touch screen operation. Setting parameters , changing parameters, searching, monitoring, fault diagnosis and other functions are done by the touch screen. Components are durable.
2. Hydraulic system: Proportional pressure control. Using international famous hydraulic components. It is steady and reliable.
3. Plasticizing system: High efficiency of plasticizing mixing screw. Make sure the plasticizing fully and evenly.
4. Speed control system: Variable-frequency speed control and alloy steel hard tooth-face speed reducer. Speed control steadily. Low noise. Durable in use.
5. Clamping and mold-moving system: The girder arm, tripod position, central mold-lock clamping unit. Durable in use. Mold-lock pressure is balance. No deformation. Ball linear guide rail. It is high precision, low resistance and high speed.
6. Blow pin holder: The whole triangle blow pin holder. Steady and no moving. Make sure the smoothness of the cutter of product.
7. Clamping unit and mold-lock system use the TONGDA patent: Two pull rod, single cylinder, two-way synchronous clamping central mold-lock system. It is very steady. Linear ball rolling guide way and microns accuracy. High precision, convenience, energy saving and no deformation.
8. Deflashing system: Independent system. Reduce the cycle time and increase efficiency.

Application:

Details:

Company:
