How an extrusion blow molding machine works

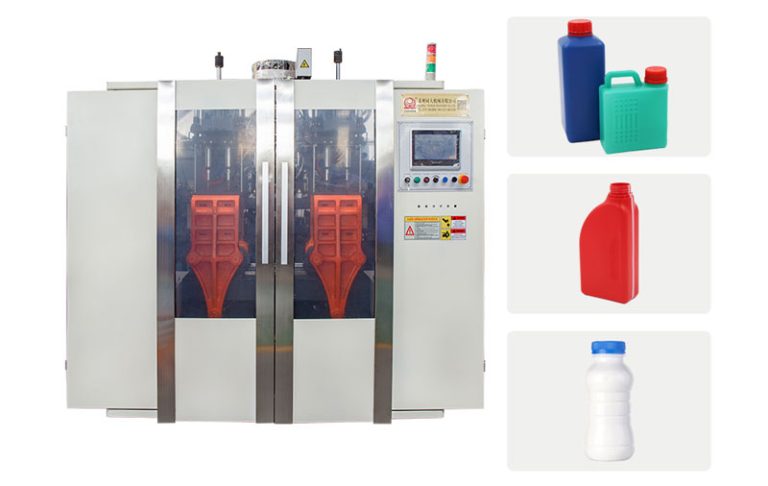

HTS II-2L Hydraulic Extrusion Blow Molding Machine

Double stationUp to 2L
Max. volume
2L
HDPE output
60kg/h
Clamping force
44kN
Screw diameter
60mm
  • Small bottle extrusion blow molding machine for 0.1L~2L containers. Stable output for sample production and batch manufacturing.
  • 0.1–2L
  • HDPE / PP
  • Double Station
  • Full-Automatic

Quick enquiry

Contact our experts

Regarding: HTSll-2L

By submitting, you agree to our Privacy Policy.

Technical Parameters

Technical Parameters — HTSll-2L
ParameterUnitHTSll-2L
Max. Product VolumeL2 (Double Station)
Dry Cyclepc/h900×2
Outputkg/h60
Machine WeightT6
Machine Sizem3.5×2.2×2.6
Platen Distancemm138–368
Mold Moving Strokemm370
Clamping ForcekN44
Screw Diametermm60
Screw L/D Ratio—25:1
Screw Heating PowerkW11.2
Heating Zones (Screw)—3
Screw Motor PowerkW15/22
Total PowerkW39
Max. Mold Sizemm360×320

Parameters are taken from the product documentation. Please confirm the final configuration with our engineers before ordering.

Product Details

High-automation blow molding platform for 10 mL–20 L hollow products, built for stable output, broad container adaptability, and long-term precision.

This model is specifically designed for hollow plastic products in the 10 mL–20 L range, catering to industries such as daily chemicals and chemicals. It integrates high automation, wide applicability, and exceptional stability into a single system: the flash trimming device is incorporated into the frame, ensuring compact structure and reliable operation; the equipped rotating blow pin rack accommodates both straight-neck and slanted-neck containers, offering broad adaptability; the core frame is manufactured in one piece using a five-axis gantry machining center, providing a high-precision installation benchmark for all components and fundamentally guaranteeing long-term stable operation and product consistency. This makes it an ideal choice for customers seeking efficient and high-quality production.

Configuration: 0.1–2L · HDPE / PP · Double Station · Full-Automatic

Application

The HTSll-2L Extrusion Blow Molding Machine handles HDPE and PP materials, suitable for the following applications:

Cosmetic Bottles Small cosmetic and skincare bottles. Sample runs for new product development.
Pharmaceutical Sample production for pharma containers. Small batch OTC bottle runs.
Laboratory Lab-scale container production. Ideal for research institutions.
Lubricant Samples Engine oil sample bottles for distributors. Small batch production.
Food Grade Small edible oil bottles, honey containers, sauce bottles.
Household Chemicals Cleaning product bottles, detergent packaging for small businesses.

FAQ

Can I visit Tongda factory before ordering the HTSll-2L machine?

Yes. Customers are welcome to visit Tongda factory before placing an order. A factory visit helps you check our manufacturing capability, R&D team, after-sales team, production process, and real equipment quality.

How does Tongda help ensure safe payment and on-time delivery?

Tongda can support agreed payment methods such as Alibaba Trade Assurance or letter of credit when applicable. Customers can also confirm delivery schedule, production progress, and bank account details during project communication or factory visits.

How does Tongda control the quality of the HTSll-2L blow molding machine?

Tongda has specialized in blow molding machinery since 1999. Key parts are inspected before assembly, each machine is assembled by experienced technicians, and the completed production line is connected and tested before delivery.

Will the HTSll-2L machine be tested before shipment?

Yes. After production is completed, Tongda debugs the machine, runs production tests, and can provide photos or videos for customer confirmation. The machine is then packed with standard export packaging for shipment.

Does Tongda provide installation, training, and after-sales support?

Yes. Tongda can arrange engineers for installation and training according to the customer’s project requirements. Sales managers, engineers, and after-sales service managers work together to follow the project online and offline.
