Technical Parameters
| Parameter | Unit | HSEII-5L |
|---|---|---|
| Max. Product Volume | L | 5 (Double Station) |
| Dry Cycle | pc/h | 1600 |
| Output | kg/h | 130 |
| Machine Weight | T | 22 |
| Machine Size | m | 7.1×4.0×4.5 |
| Platen Distance | mm | 300–660 |
| Mold Moving Stroke | mm | 550 |
| Clamping Force | kN | 158 |
| Screw Diameter | mm | 90 |
| Screw L/D Ratio | — | 25:1 |
| Screw Heating Power | kW | 17.4 |
| Heating Zones (Screw) | — | 4 |
| Screw Motor Power | kW | 37 |
| Total Power | kW | 106.9 |
| Max. Mold Size | mm | 540×430 |
Parameters are taken from the product documentation. Please confirm the final configuration with our engineers before ordering.
Product Details

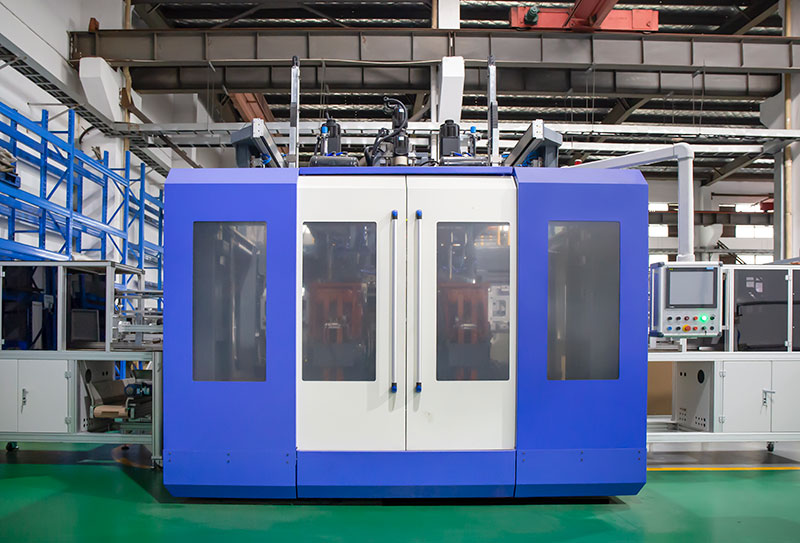

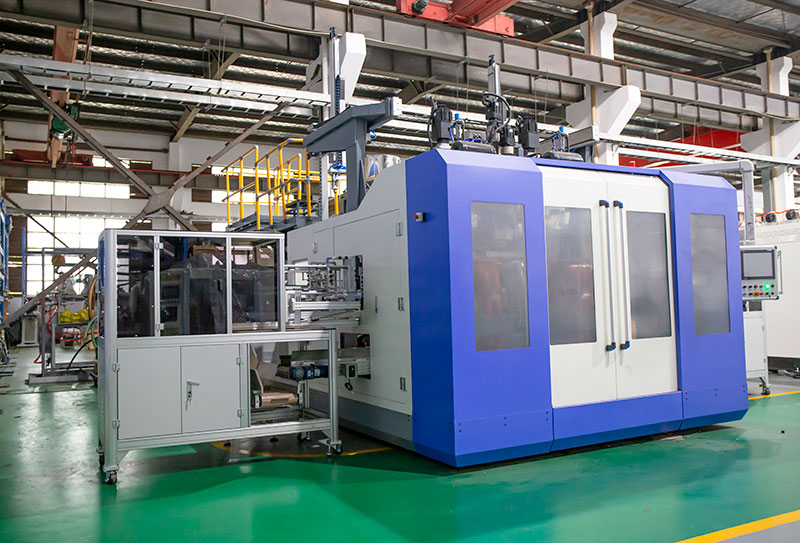

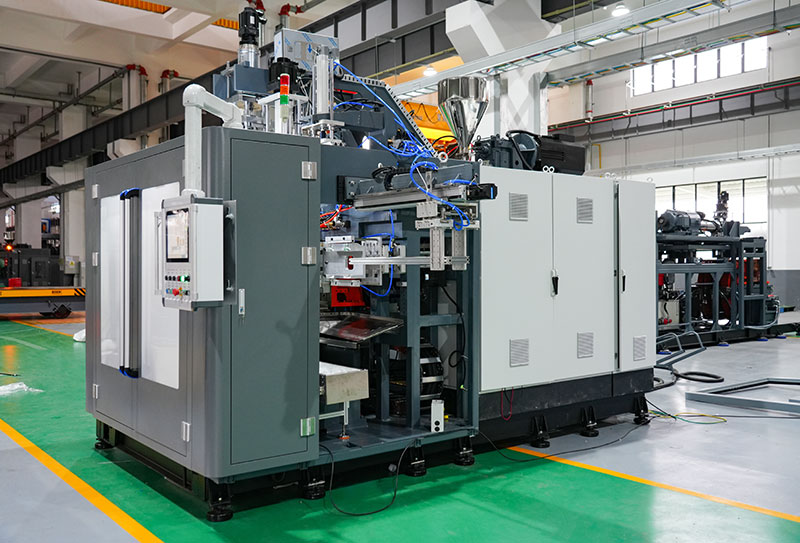

Fully electric blow molding platform for 10mL-50L cleanroom-grade containers, built for high cleanliness, lower energy use, and intelligent production control.
This model is specifically engineered for high-standard hollow plastic products ranging from 10mL to 50L, making it an ideal solution for cleanroom production in medical, food, and wet electronic chemicals industries. The equipment employs a fully electric drive system, eliminating hydraulic components and reducing oil contamination to near-zero at the source, thereby meeting the stringent requirements of high-cleanliness production environments. Furthermore, its energy-saving design helps clients achieve a 30%-50% reduction in energy consumption while increasing production output by 10%-15%. The integrated intelligent control system also enables early warning alerts and production data storage/analysis, significantly enhancing production management efficiency and automation levels. This provides customers with a stable, clean, and efficient intelligent blow molding solution.
Configuration: 2–5L · HDPE / PP · Double Station · Full-Automatic
Application

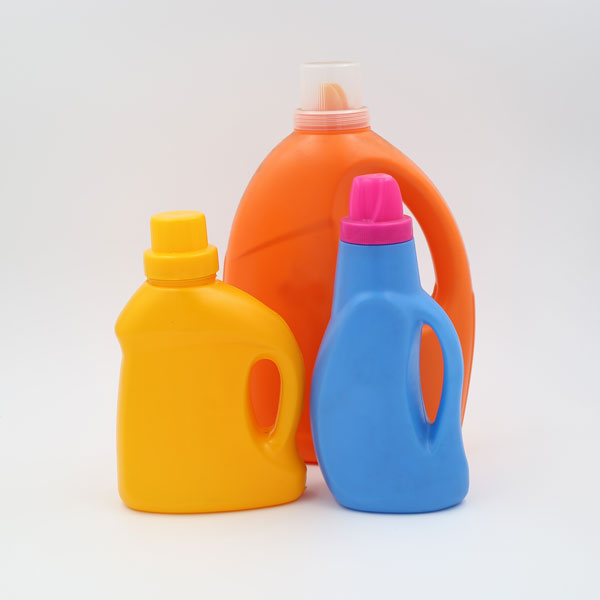

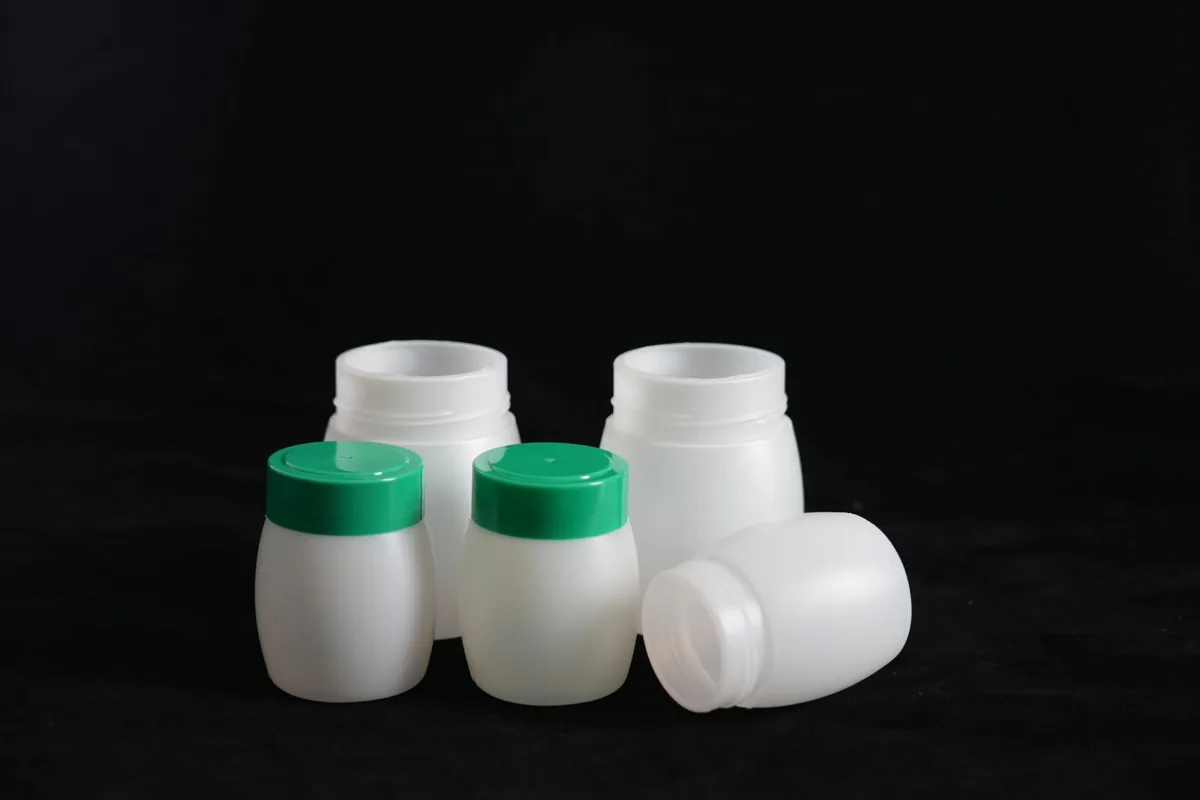

The HSEII-5L Extrusion Blow Molding Machine handles HDPE and PP materials, suitable for the following applications:
FAQ
Can I visit Tongda factory before ordering the HSEII-5L machine?
Yes. Customers are welcome to visit Tongda factory before placing an order. A factory visit helps you check our manufacturing capability, R&D team, after-sales team, production process, and real equipment quality.
How does Tongda help ensure safe payment and on-time delivery?
Tongda can support agreed payment methods such as Alibaba Trade Assurance or letter of credit when applicable. Customers can also confirm delivery schedule, production progress, and bank account details during project communication or factory visits.
How does Tongda control the quality of the HSEII-5L blow molding machine?
Tongda has specialized in blow molding machinery for more than 20 years. Key parts are inspected before assembly, each machine is assembled by experienced technicians, and the completed production line is connected and tested before delivery.
Will the HSEII-5L machine be tested before shipment?
Yes. After production is completed, Tongda debugs the machine, runs production tests, and can provide photos or videos for customer confirmation. The machine is then packed with standard export packaging for shipment.
Does Tongda provide installation, training, and after-sales support?
Yes. Tongda can arrange engineers for installation and training according to the customer’s project requirements. Sales managers, engineers, and after-sales service managers work together to follow the project online and offline.
