application

About the Jerrycan we produce:

  • Save time: Short color change time(1-2hours)
  • High quality: Smooth surface、Uniform wall thickness
  • Cost saving: The scrap rate is only 30%, and the energy saving of the whole machine can reach 20%
  • Personalization: View strip line, multi-layer, etc.
    Different output requirements can be achieved (40 to 200pcs/hr)
  • Customizable product size requirements (3 to 60L).

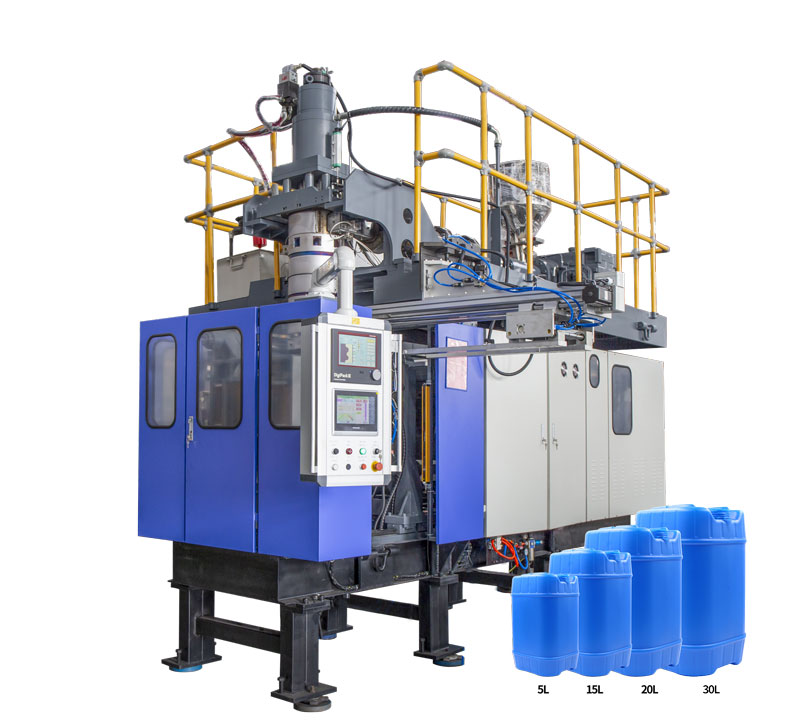

Jerry Can Blow Molding Machine

TONGDA Clients

Successfully supplied Jerrycan blow molding machine lines to many countries around the world

Trusted By

Successfully supplied Jerrycan blow molding machine lines to many countries around the world

WHY CHOOSE US TO START PLASTIC STACKABLE JERRYCAN PROJECT

TONGDA Jerrycan machine Models

Model Product Size Output of HDPE Output of Product
HSII-5L/1
5L
110kg/hr
160-180pcs/hr for 5L
HSII-12L/1
5-10L
180kg/hr
140-150pcs/hr for 10L
HSII-15L/1
10-20L
230kg/hr
130-140pcs/hr for 20L
HSII-30L/1
10-30L
300kg/hr
100-120pcs/hr for 30L
TDB-25F
10-25L
110kg/hr
50-55pcs/hr for 25L
TDB-50F
20-50L
130-160kg/hr
45-50pcs/hr for 50L

Advantages of Tongda Machinery Products

Hydraulic system:

Proportional hydraulic control, equipped with imported hydraulic valve and oil pump, stable and reliable.

Plasticizing system:

The plasticizing system adopts American S design series. Full consideration shall be given to the full plasticization of such medium molecular weight and high molecular weight polyethylene. The high efficiency plasticizing mixing screw is used to fully and evenly plasticize, improve the surface quality of the product, and effectively prevent the temperature rise of the screw. The diameter of 90MM screw can reach 130Kg/h. Equipped with energy-saving device of frequency converter, the average plasticizing capacity is 3.97Kg per kilowatt hour. Its energy consumption ratio is second to none among similar products.

Electrical control system:

Mitsubishi PLC computer interface (Chinese and English) control All process setting, change, retrieval, monitoring, fault diagnosis and other functions are realized on the touch screen. The working principle of pointless contact makes the components durable.

Material injection:

Independent single (large) oil cylinder feeding ensures the concentricity of feeding and absolutely avoids the asynchronous phenomenon of double oil cylinders. Tongda’s unique technology 10 section pressure wall thickness control function reduces the difference between the upper and lower width of the blank due to vertical extension, and improves the uniformity of the product wall thickness.

Low energy consumption:

Equipped with oil pump servo motor, it can save about 10 kilowatt hours of electricity. The longer the molding cycle is, the more significant the energy saving effect will be. Select the appropriate power to make the motor work at the appropriate speed, extend the service life of the motor, and reduce the hydraulic oil temperature. The motor will not run at high speed due to too small motor power, which will lead to motor vulnerability.

How to customize for you

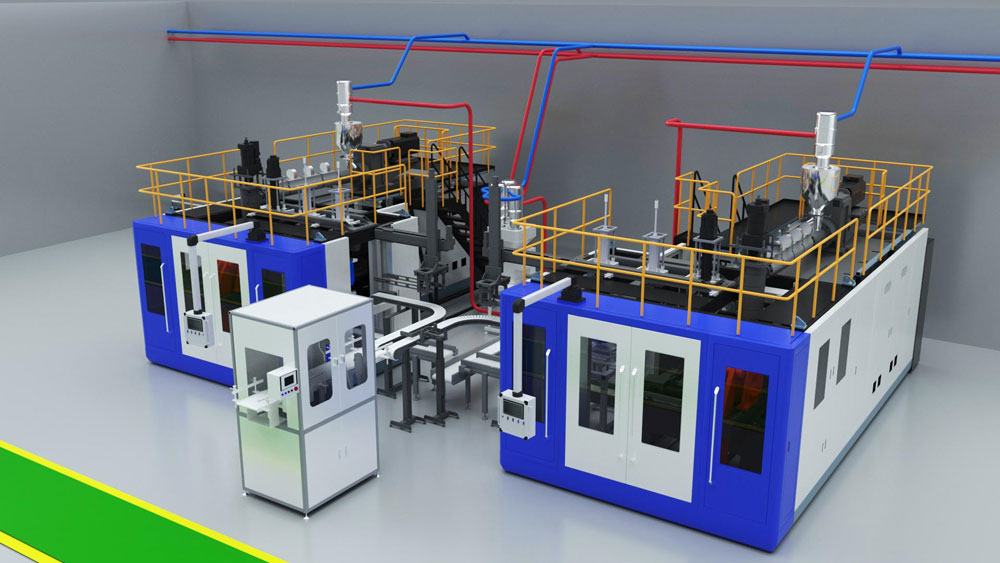

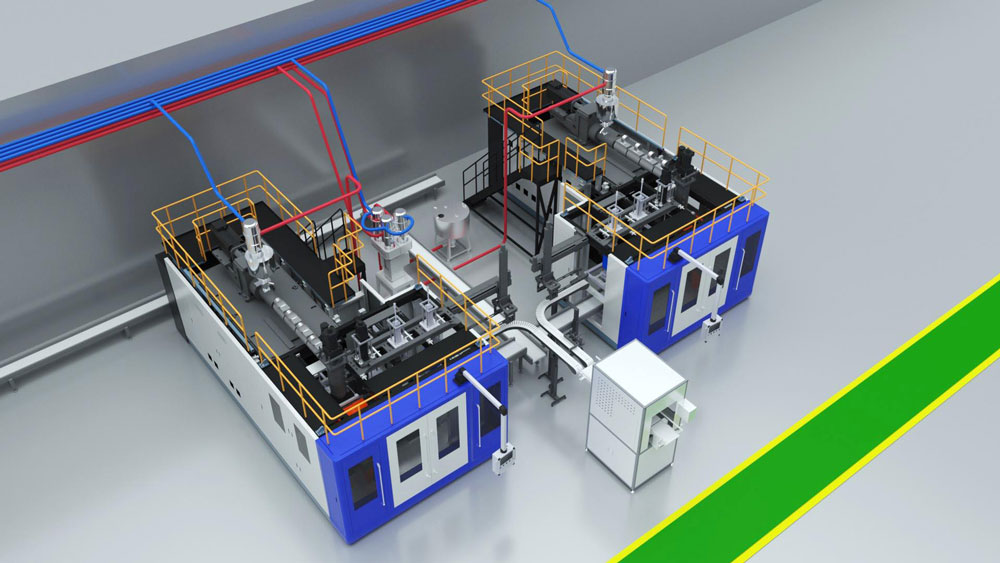

Layout of the whole line
